BS-i203G+BT

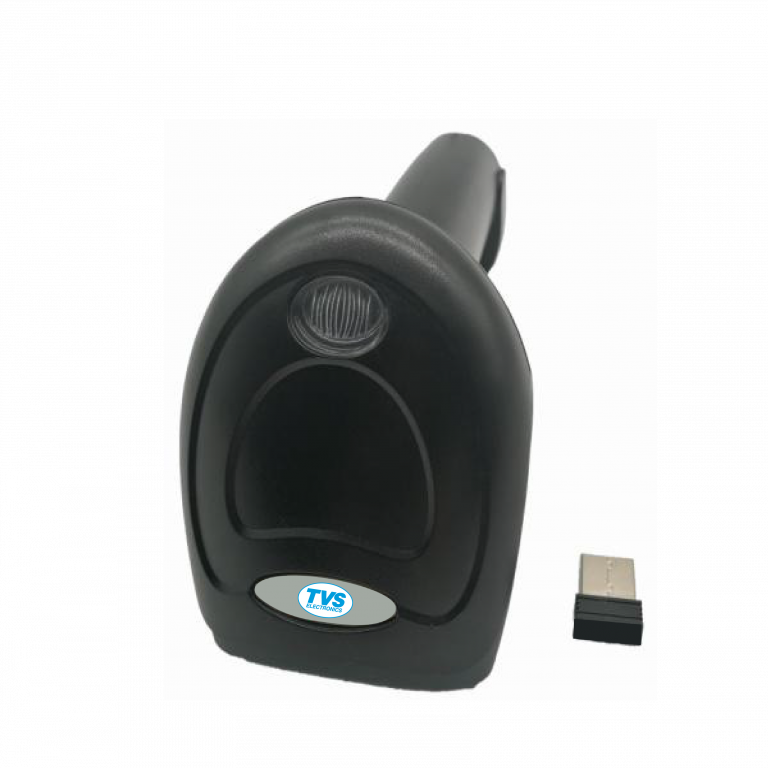

TVS-E BS-i203G BT - Lightweight Barcode Scanner
BS-i203G+BT
ADVANTAGES
2.4Ghz Bluetooth Wireless Connectivity
Bluetooth Communication Distance 100m (Line of Sight)
Built-in 512K memory can store more than 10000 barcodes
Higher Battery Capacity
BS-i203G+ BT : 2D Wireless barcode scanner customized for scanning of secure Aadhaar QR code
Features
2D Laser scanner with sharp aim and shoot reading
Built-in 512K memory can store more than 10000 barcodes
2.4Ghz bluetooth wireless technology
Battery capacity of 2500 mAh
SPECIFICATIONS
Scan mode
Automatic / Manual
Alarm mode
LED light alarm, Buzzer alarm
Light Source
(Aimer) Red color LED; (Illumination) White color LED
Image (Pixels)
1280 pixels (H) x 800 pixels (V),1 Million Pixels
Scan angle
28°(Horizontal),20°(Vertical)
Roll / Pitch / Yaw
360°(Roll), ±65°(Skew) , ±65°(Pitch)
Scan depth of field
Code39(5mil): 40mm-210mm
Code39(13mil): 60mm-380mm
QR(20mil): 25mm-260mm
EAN-13(5mil): 55mm-170mm
Barcode type
1D: Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industrial、Straight 2 of 5 IATA，Matrix 2 of 5，Code 11、Code128、GS1-128、UPC-A、UPC-E、 EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBarOmnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2of 5)、Korea Post.
2D: PDF417, QR code, Matrix 2 of 5, MicroPDF417, Australian Post, Canada Post,Japan Post,MaxiCode, Codablock, Aztec, Dutch Post, DataMatrix, etc.
Voltage
+4.2V±10% VDC
Battery capacity
2500mAh
Current Starting
Current:204mA
Stand-by Current:96mA
Work Current:226mA
Interfaces
2.4G, Bluetooth
Print Contrast
20% minimum reflective difference
Ambient Light Immunity
0-100,000 Lux
Operating temperature
-20°C ~ 60°C
Storage temperature
-30°C ~ 70°C
Humidity
5% to 95% relative humidity,non-condensing
Drop
Designed to withstand 1.5m(5’) drops
Dimensions (LxWxH)
159.99mm x 69.38mmx 107.61mm
Weight
188.5g
Color
black
Material
ABS + EVA
